STF says:

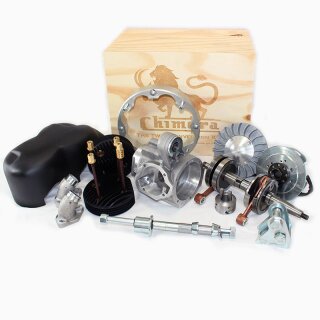

"The Chimera twin-cylinder conversion kit with small casing 125 150 175 allows you to obtain a twin-cylinder engine starting from the original engine of your Lambretta.
Included in the Chimera Twin Cylinder Conversion Kit:
- 1 Stabilized fusion block twin-cylinder conversion small-block crankcase 125 150 175
- 2 high speed bearings
- 1 Viton oil seal
- 2 specific Seegers
- 5 studs tailormade
- 1 Set of special sealing screws for casting block
- 3 Studs for assembly and disassembly of the casting block
- 1 Double Crankshaft complete with silver cages. coppery 107 mm rod and 58 mm stroke
- 1 Shaft collar with keys
- 1 Zero balanced CNC DL cone flywheel
- 1 Disulphide impeller
- 1 Venturi aluminum cone with screws and washers
- 1 12-pole stator 2 Ducati Energia with pick-ups
- 2 Ducati Energia variable advance electronic CDI coils
- 1 Ducati Energia voltage regulator
- 2 Flywheel cable outlet plates
- 1 specific Plug&Play wiring for twin-cylinder
- 1 Stainless steel coil and regulator support bracket
- 1 Throttle cable splitter
- 2 Spark plug wires
- 2 NGK shielded spark plug caps
- 2 Flywheel flange gaskets
- 2 Intake manifolds based on the cylinder kit and carburettor used (specify when ordering)
- 8 studs per cylinder
- 8 Self-centering brass bushings for cylinder head
- 2 CNC cylinder heads with dome ø64,00
- 8 Brass head nuts
- 1 Fiberglass plus Kevlar reinforced cooling cap
- 1 Set of cooling cap fixing screws
- 1 Fuel hose splitter “Y”
- 1 Engine pin complete with bushings and offset bushings
- 1 Avional CNC rear wheel spacer
- 1 Set of specific screws for spacer
- 1 Carter cutting template
- 2 Cylinder cutting templates (right and left)
- 1 cutting disc
- 1 emery disc
- 1 Right side footpeg support kit
- 1 Rear shock absorber support
- 1 pair of silentblock alignment templates
ATTENTION: The twin-cylinder conversion kit can only be installed with Series 3/DL/GP rear hub."
For race use only! Not admitted in the area of the german StVZO and when you want to use it on the road, please contact your local vehicle licensing authority first!
