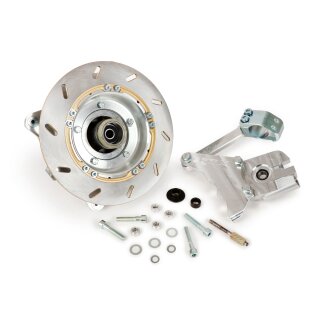

German made disc brake with brake torque support (Antidive). This effectively prevents the annoying slamming when braking. This allows the great braking power of the disc brake to be used optimally. The Antidive also allows the installation of softer fork springs, as these no longer have to absorb the high braking torque. For the original disc brakes - Forklinks the brake fits without modifications. Due to the Anti Dive support the use of wider tires than 3.50-10 is limited.
The used brake disc has an outer diameter of 220 mm and is screwed 10 times.
The mounting for the brake caliper is designed for the 4-piston caliper of the bgm PRO and the Stage6.
This allows very high deceleration values to be achieved on the Lambretta.
Due to the original SIL brake drum the conversion is very harmonious. The drum is supplied with all the necessary small parts (bearings, oil seals, bushings, etc.). The drum is unpainted. The threads are provided with steel inserts.
The brake is supplied pre-assembled.
When assembling, please note:
- On fork links for drum brakes, remove the pin for the brake torque support.
- The support for the antidive function must be at a 90° angle to the fork. Make sure that there is sufficient distance to the tyre.
NOTE: If an aluminium rim for tubeless tyres is to be used, please use the 49-Z000242 bolts. This are longer bolts to compensate for the greater material thickness of the aluminium rims.
NO calliper included!
Please note: For type approval and liability reasons, we advice that this conversion kit is intended for race or show use only. If you want to use it on public roads, please consult your local vehicle approval authority.
Not for use on public roads!
